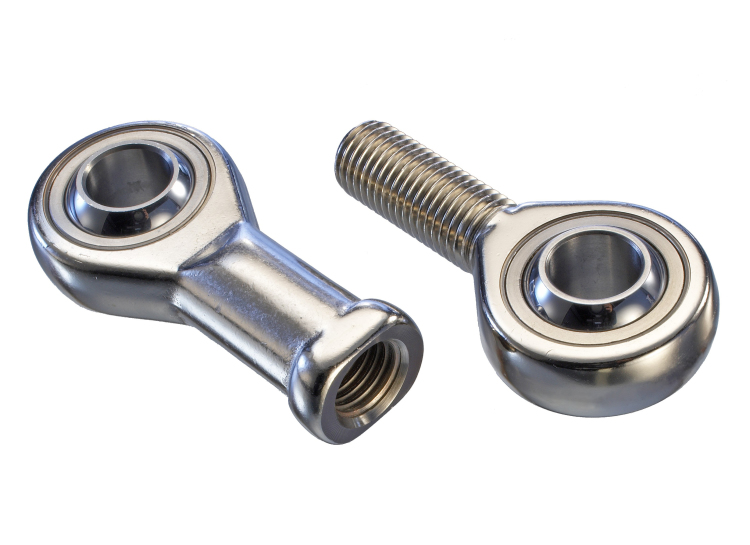

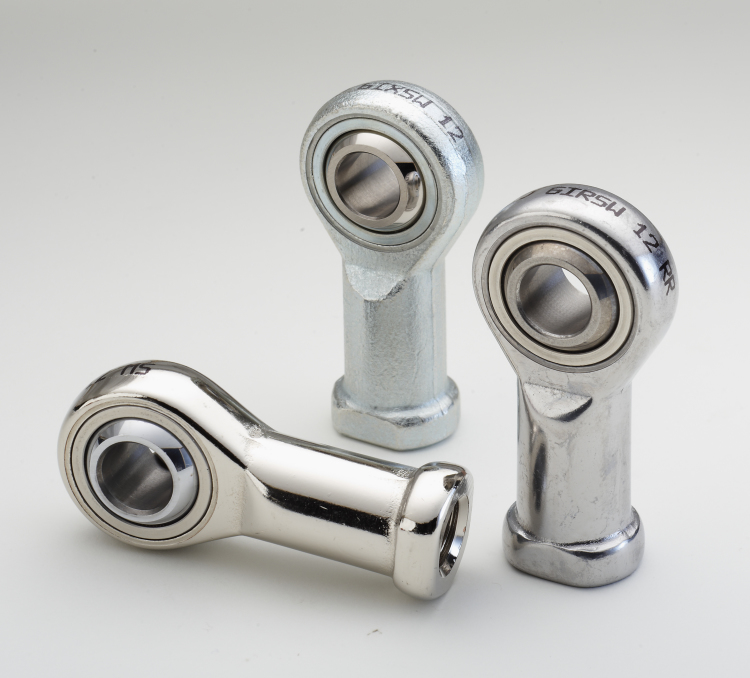

MS - Series Bearings
PRELOADED BEARING FIT
An internal play with 'zero' tolerance is achieved through a preloaded bearing. Under normal permissible conditions and usage a minimal settlement of the bearing components or a minimal
tolerance increase at the mating surface will take place. This special bearing technology causes a considerably higher bearing life with continuous low internal clearance. However MS-Spherical Plain
Bearings are not suited for rotation as well as very high swivel frequency. Please note that the series GXO..ICR(RR) is not a preloaded bearing version, but the clearance is
reduced to a minimal fit.
The nickel plated housing surface with a high polish finish achieves a sporty appealing design, especially on visible components. This high-quality surface treatment with high corrosion resistance
minimizes the sedimentation of dirt and is easy to clean.
Maintenance Free Rod Ends and Spherical Plain Bearings must not be lubricated. The ball revolves on a PTFE liner incorporated in the Insert.
Upon customer requirements the parts can be checked against cracks.
