Digital Thermatic® Fan Switch - GEN II with 1/4" NPT Sensor & 38mm Inline Adapter
12 & 24 Volt | Part Number: 0488
(Supersedes Part No. 0438)

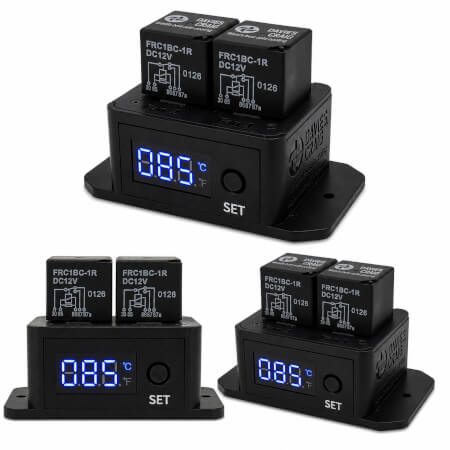

The Digital Thermatic® Fan Switch GEN II (Part 0488) is the next evolution of Davies Craig’s proven fan controller, replacing the popular Part 0438. Designed for improved usability, flexibility, and durability, the GEN II delivers enhanced control of single or dual electric fans with smarter features and a more installer-friendly design.
Variations of Part No. 0488
- Part No. 0480: Digital Thermatic® Fan Switch GEN II. (Supersedes #0444)
- Part No. 0481: Digital Thermatic® Fan Switch GEN II with 1/4" NPT Thermal Sensor. (Supersedes #0445)
- Part No. 0482: Digital Thermatic® Fan Switch GEN II with 1/8" NPT Thermal Sensor. (Supersedes #0448)
- Part No. 0483: Digital Thermatic® Fan Switch GEN II with M12 x 1.5 Thermal Sensor.
- Part No. 0485: Digital Thermatic® Fan Switch GEN II with 1/4" NPT Thermal Sensor & 35mm Inline Adapter. (Supersedes #0435)
What’s New
- Improved Display & Layout
- Larger, clearer LED display with °C / °F units
- LED repositioned for better visibility
- All wiring relocated to the rear for cleaner, easier installation
- Faster Dual Fan Operation
- Second fan start-up delay reduced to 5 seconds for improved cooling response
- Advanced Override Control
- Dual manual override wires for independent fan control
- Selectable override signal polarity (positive or negative)
- Enhanced Durability
- Upgraded to IP67 rating for superior water and dust protection
- Expanded Temperature Range
- Adjustable from 5°C to 110°C (41°F to 230°F)
38mm Inline Adapter – Simple Sensor Installation
The included 38mm Inline Sensor Adapter provides a quick and reliable way to install the thermal sensor directly into your cooling system:
- Fits neatly into your top radiator hose (38mm ID)
- Allows easy sensor installation without modifying engine components
- Two 1/4" NPT ports enable:
- Thermal sensor fitment
- Optional air bleed functionality
- Includes a bung if only one port is required
Flexible sizing options:
- Up to 44mm hose compatibility with 3mm adapter sleeve (Part #18510)
- Up to 50mm hose compatibility with 6mm adapter sleeve (Part #18511)
- *Sold Separately
This design makes installation faster, cleaner, and more versatile across a wide range of vehicle applications.
Key Features
- Digital temperature control with easy push-button adjustment
- Dual relay outputs for independent fan operation
- Automatic fan staging for efficient cooling
- Memory retention of temperature settings
- Designed for direct coolant measurement using included 1/4" NPT thermal sensor
- Suitable for 12V systems (24V compatible with relay change, part #10534, sold separately)
How It Works
- Fan 1 activates at your set temperature
- Fan 2 activates 5 seconds later for staged cooling
- Both fans switch off once temperature drops 5°C below set point
Installation Flexibility
- Direct coolant measurement via included 1/4" NPT sensor (ideal for thermostat housing, radiator, engine block or inline adapter)
- Radiator probe mounting or direct coolant measurement options
- Inline adapter compatibility for hose installation

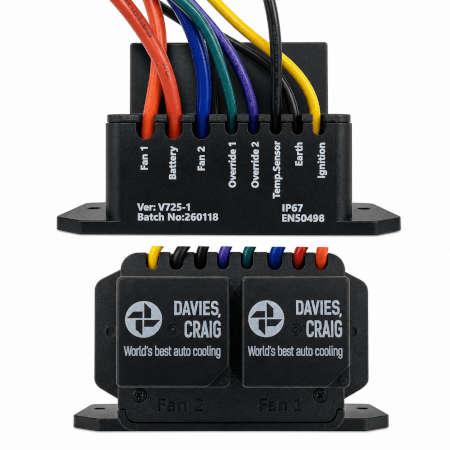

- Simple wiring with clearly labelled connections (battery, ignition, fan outputs, overrides)
(Refer to installation diagrams and wiring layout shown on page 3 of the instructions for full setup guidance.)
Specifications
- Voltage: 12V (24V compatible with relay change)
- Temperature Range: 5°C – 110°C (41°F – 230°F)
- Continuous Current: 30A (40A max)
- Start-Up Current: 60A
- Protection Rating: IP67

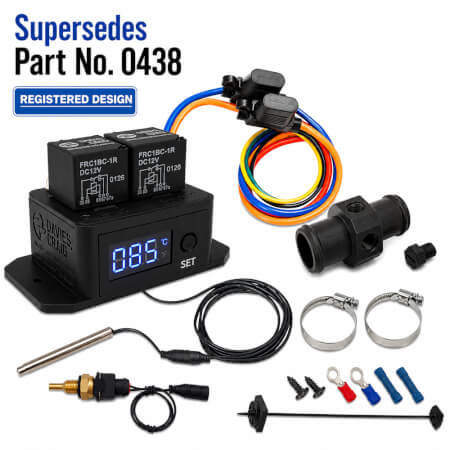

What’s Included (Part No. 0488)
- 1 x Digital Thermatic® Fan Switch GEN II
- 1 x 1/4" NPT Thermal Sensor Kit
- 1 x 38mm Inline Adapter
- 1 x Temperature Probe
- 1 x Mounting Kit Temperature Probe
- 1 x Red Ring Terminal
- 1 x Blue Ring Terminal
- 2 x Blue Wire Joiner
- 2 x Self Tap Screws
- 1 x Instructions
Why Upgrade?
The GEN II isn’t just an update—it’s a complete usability and performance improvement over previous models. With smarter control, faster response, improved installation design, and direct coolant sensing capability, it delivers everything needed for modern cooling systems.
Registered Design:
The Digital Thermatic® Fan Switch (Part No. 0480) and associated design variations are protected by Registered Design rights. Unauthorised reproduction or imitation is prohibited.
