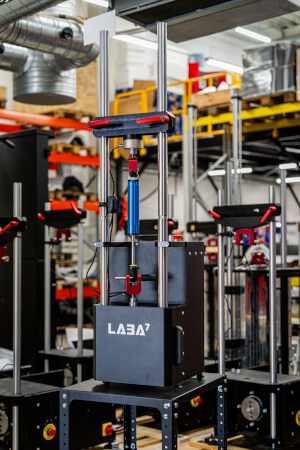

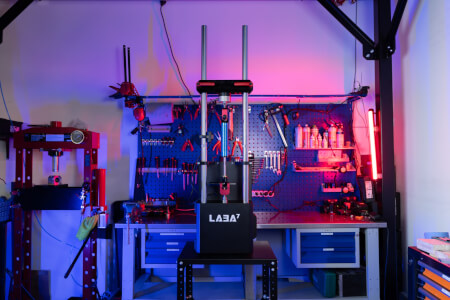

MICRO Shock Dyno - Closed-Loop Servo
MICRO shock dyno is designed for race teams and suspension shops that need damper data at the track. Closed-loop servo drive holds the set velocity at every crank position.
- Velocity: 0.04–39.4 in/s (1–1,000 mm/s)
- Load cell: 2,248 lbf (10,000 N)
- Stroke: 10 / 25 / 50 mm, mechanical change
- Motor: 2.7 HP closed-loop servo, 110V / 230V single phase, generator capable
- Mounting length: up to 27.6 in (700 mm)
- Between masts: 8.1 in (205 mm)
- Weight: approx. 65 kg (143 lb)
Fits what fits inside 205 mm between the masts and 700 mm of free mounting length.
Included: v2.0 software, two self-preload clevis adapters, new features, updates, and lifetime technical support.
Price: 6,000 EUR excl. VAT (approx. 6,970 USD)
