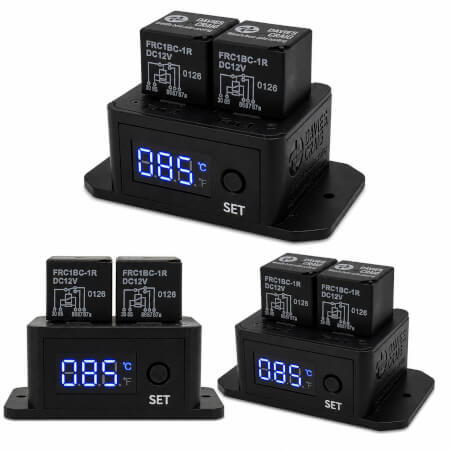

Digital Thermatic® Fan Switch - GEN II
Digital Thermatic® Fan Switch - GEN II
12 & 24 Volt | Part Number: 0480
(Supersedes Part No. 0444)
Upgrade your cooling control with the latest GEN II Digital Thermatic® Fan Switch, redesigned for improved usability, durability, and performance. Built for precision temperature management, this next-generation controller delivers smarter fan operation and enhanced installation flexibility.
Variations of Part No. 0480
- Part No. 0481: Digital Thermatic® Fan Switch GEN II with 1/4" NPT Thermal Sensor. (Supersedes #0445)
- Part No. 0482: Digital Thermatic® Fan Switch GEN II with 1/8" NPT Thermal Sensor. (Supersedes #0448)
- Part No. 0483: Digital Thermatic® Fan Switch GEN II with M12 x 1.5 Thermal Sensor.
- Part No. 0485: Digital Thermatic® Fan Switch GEN II with 1/4" NPT Thermal Sensor & 35mm Inline Adapter. (Supersedes #0435)
- Part No. 0488: Digital Thermatic® Fan Switch GEN II with 1/4" NPT Thermal Sensor & 38mm Inline Adapter. (Supersedes #0438)
What’s New vs Part No. 0444
- Improved Display & Layout
- Larger, clearer LED display with °C / °F units
- LED repositioned for better visibility

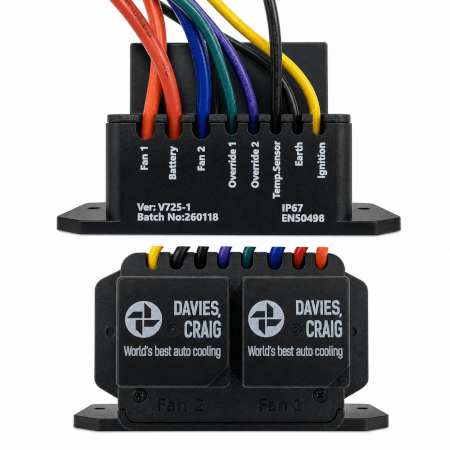

- All wiring relocated to the rear for cleaner, easier installation
- Faster Dual Fan Operation
- Second fan start-up delay reduced to 5 seconds for improved cooling response
- Advanced Override Control
- Dual manual override wires for independent fan control
- Selectable override signal polarity (positive or negative)
- Enhanced Durability
- Upgraded to IP67 rating for superior water and dust protection
- Expanded Temperature Range
- Adjustable from 5°C to 110°C (41°F to 230°F)
Key Features
- Digital temperature control with easy push-button adjustment
- Dual relay outputs for independent fan operation
- Automatic fan staging for efficient cooling
- Memory retention of temperature settings

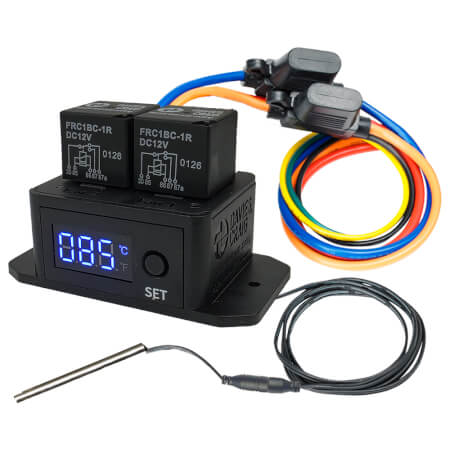

- Compatible with both temperature probe and thermal sensor setups
- Suitable for 12V systems (24V compatible with relay change, part #10534, sold separately)
How It Works
- Fan 1 activates at your set temperature
- Fan 2 activates 5 seconds later for staged cooling
- Both fans switch off once temperature drops 5°C below set point
Installation Flexibility
- Radiator probe mounting or direct coolant measurement options
- Inline adapter compatibility for hose installation
- Simple wiring with clearly labelled connections (battery, ignition, fan outputs, overrides)
(Refer to installation diagrams and wiring layout shown on page 3 of the instructions for full setup guidance.)
Specifications
- Voltage: 12V (24V compatible with relay change)
- Temperature Range: 5°C – 110°C (41°F – 230°F)
- Continuous Current: 30A (40A max)
- Start-Up Current: 60A
- Protection Rating: IP67

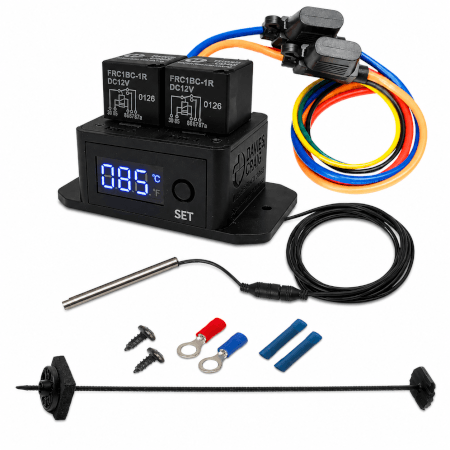

What’s Included
- 1 x Digital Thermatic® Fan Switch GEN II
- 1 x Temperature Probe
- 1 x Mounting Kit Temperature Probe
- 1 x Red Ring Terminal
- 1 x Blue Ring Terminal
- 2 x Blue Wire Joiner
- 2 x Self Tap Screws
- 1 x Instructions
(Kit contents may vary slightly depending on variant – see page 1 of instructions.)
Why Upgrade?
The GEN II isn’t just an update—it’s a complete usability and performance improvement over Part No. 0444. With smarter control, faster response, and a more installer-friendly design, it delivers everything needed for modern cooling systems.
Registered Design:
The Digital Thermatic® Fan Switch (Part No. 0480) and associated design variations are protected by Registered Design rights. Unauthorised reproduction or imitation is prohibited.
Mounting position | Engine bay | Engine bay | Engine bay | Vehicle Cabin | Engine bay | Engine bay | Vehicle Cabin
Mounting options | Built in Mounting holes | Built in Mounting holes | Bracket supplied | Universal 52mm gauge | Built in Mounting holes | Built in Mounting holes | Various Mounting Options supplied
