Rottler SG7MTS MANUALMATIC

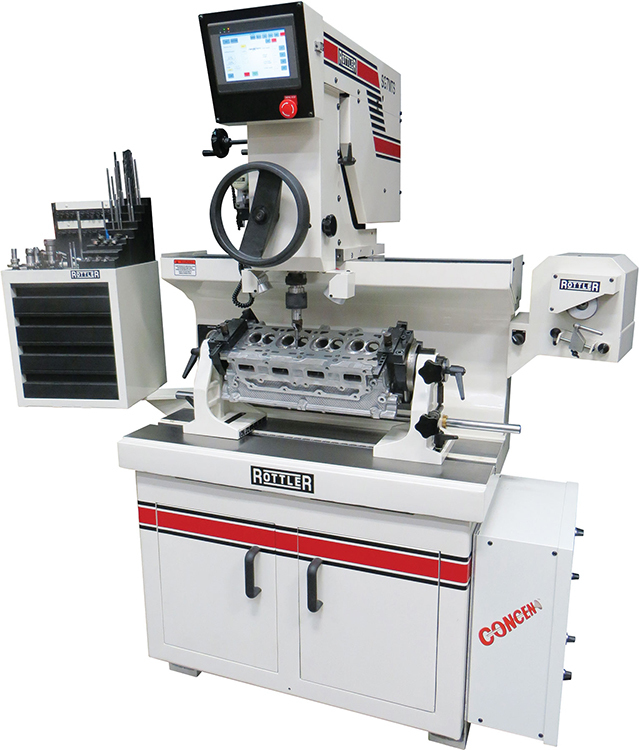

SG7MTS MANUALMATIC Touch Screen Control Seat & Guide Machine
The SG7MTS uses the same proven fixed carbide pilot tooling as SG7M but now has a front mount steering wheel for spindle downfeed.
The machine have 2 modes of operation:
MANUALMATIC – a brand new concept has been added to these machines which should increase productivity by 30-50%. During seat cutting, the operator does not have to operate any buttons or switches, simply turn the spindle feed steering wheel up and down and the control takes care of all the functions like workhead float/clamp, pilot centering in the valve guide and spindle on/off. When depth of seat is reached, the control automatically changes spindle RPM to high/finish speed to give equal depth of every seat and consistent surface finish results.
MANUAL – the buttons on touch screen are the same as the previous SGM machines. There is no external dial gauge, the spindle vertical position is displayed on the touch screen. Simply feed the spindle down until the cutting insert touches the valve seat, touch set zero button and then the digital display will show exactly where the spindle is at all times. The change from low to high/finishing speed is easier as there are 2 separate buttons. The foot pedal for clamp and float of workhead has been eliminated and now controlled on touch screen for manual and automatically for MANUALMATIC.
The SG7MTS features Rottler's trademark CONCEN that guarantees you get the most accurate and versatile machine possible. Rottler combines precision carbide centering pilots with a light weight air float workhead to give you perfect centering with the valve guide - every time. This guarantees the best CONCEN of valve seat to valve guide centerline in the industry.
