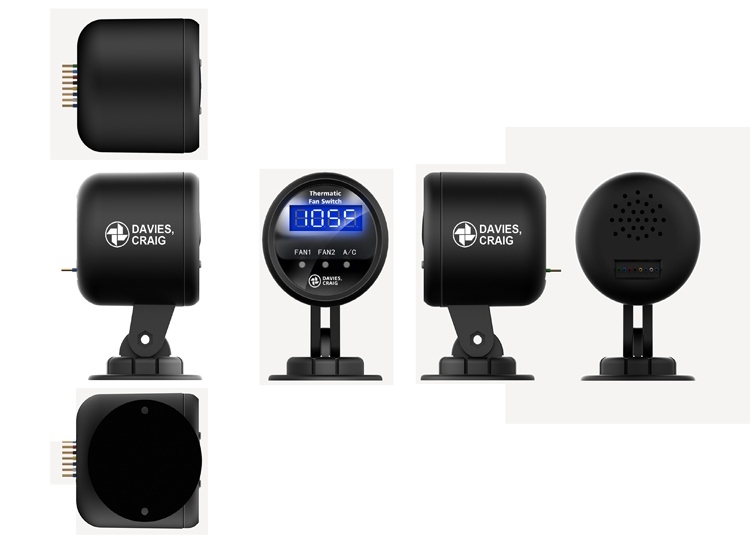

A bright, attractive, compact high visibility 52mm round gauge with LED digital display for mounting in the driver’s compartment!

Automatically activates single or twin fans or a fan and Electric Water Pump at your set / targeted temperature when extra cooling is required. It can also detect transmission fluid temperature.

It senses air temperature as it passes through the radiator with the sensor placed in the radiator fin section or alternatively the sensor can also be placed directly into the coolant system in combination with a Temperature Sensor Adaptor Kit (Part 0409).

The kit is sold in 12 Volt configuration.
*For 24 Volt application: 2 x 24V Relays required, sold separately (Part #10534)

AIR TEMPERATURE APPLICATION
The kit is set up for air temperature sensor application. For water / coolant applications, please read below.

It senses air temperature as it passes through the radiator and has an adjustable temperature range of 5ºC to 110ºC (41ºF to 230ºF).
The Temperature Sensor is placed in the radiator fin section as close to the hot coolant inlet as possible, no need to cut hoses or can be placed directly into the coolant system.

WATER / COOLANT APPLICATION
Part #0500 sensor can also be placed directly into the coolant system.
> Use #0465 for OE style 1/4 “NPT port install
> Use #0409 for radiator hose install


The DIGITAL GAUGE THERMATIC® FAN/EWP® SWITCH must be mounted inside the vehicle’s driving compartment for easy reading and quick adjustment.

Convenient push-button control allows you to accurately set/target temperature for automatic activation of the Thermatic® Fan #1 and Fan #2 at independent temperatures when extra cooling is required.

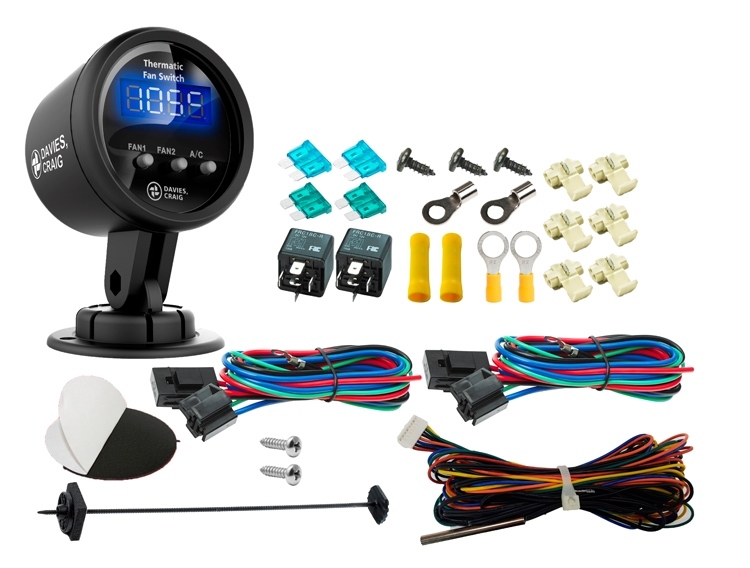

Simple, do-it-yourself installation instructions.
This flexible switch can also be used to activate an Electric Water Pump and/or an Electric Booster Pump.

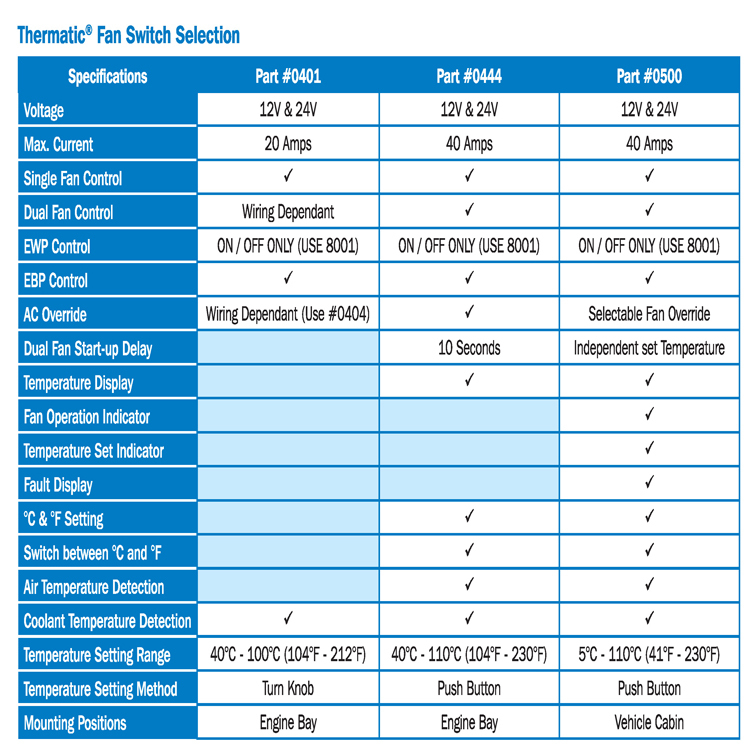

This new DIGITAL GAUGE THERMATIC® FAN/EWP® SWITCH complements the highly successful #0400 Combo, #0401, #0404 and #0444 Thermatic® Switches

FEATURES
> Temperature Sensor Display Range 0C ~ 130C (32F ~ 266F)
> Temperature Sensor Setting Range 5C ~ 110C (41F ~ 230F)
> Temperature Units interchangeable between C & F
> 12V and *24V compatible
*For 24 Volt application: 2 x 24V Relays required, sold separately (Part #10534)
> Can detect ambient temperature (air) as standard
> Can detect coolant temperature
Use #0465 for OE style 1/4 “NPT port install
Use #0409 for radiator hose install
> Can detect transmission fluid temperature
Use #0465 and requires (sourced externally)
> 1 x Female Fitting Pipe Tee 1/4' NPT
> 2 X 3/8' Barb Fitting To 1/4' NPT
> Independent set temperature for Fan 1 and Fan 2
> Independent control of A/C override (fan 1, fan 2 or both)
> Can be used as manual override
> Can Manually turn off Fans (press and hold Fan + A/C)
> For river crossing as example
> Led indicators for Fan1, Fan2 and A/C
> LED lights show operating condition
> Over temperature warning with audible alarm
> Audible alarm has 5min Snooze function.
> Universal 52mm gauge design.
> Built in display dimmer with headlight trigger
> Extra-long temperature sensor wires 380 cm
> Interchangeable/replicable sensor
